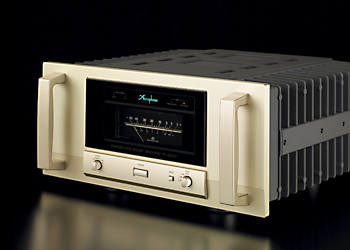

The M-6000 was born out of a thorough re-evaluation of the power amplifier
from a new vantage point. Aiming for nothing less than the ultimate in
sound quality, this monophonic power amplifier with its massive heat sinks
on both sides stands as an impressive achievement. The decisive difference
to conventional designs lies in the fact that the M-6000 possesses two
completely identical power amplifier circuits which are driven in parallel.
Kept entirely separate and mounted on the left and right sides of the chassis,
these circuits deliver output current reserves on a previously almost unheard-of
level. A damping factor rating of more than 500 demonstrates that this
amplifier is capable of driving even the most difficult, ultra-low impedance
loads with ease.
|
|
 |
Two totally identical power amplifier circuits driven in parallel |
|
|
16 parallel push-pull arrangement of MOS-FET devices in output stage |
|
|
Input stage configured as double instrumentation amplifier |
|
|
Double MCS+ circuit and current feedback topology in amplification stage |
|
|
Support for bridged use of two M-6000 units with even higher output power |
|
|
Power supply with massive high-efficiency 900-VA toroidal transformer and
large filtering capacitors |
