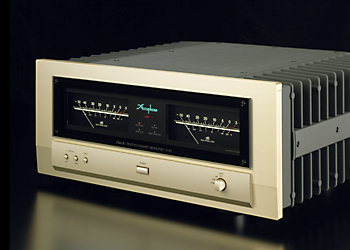

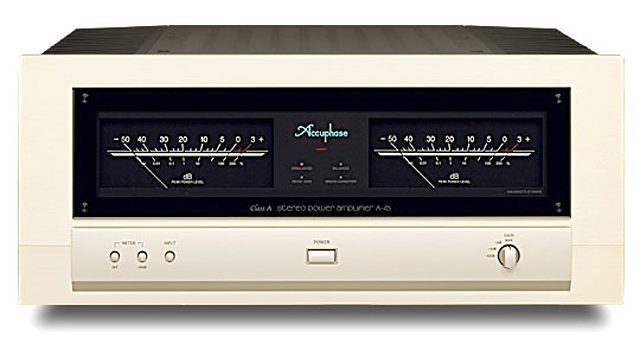

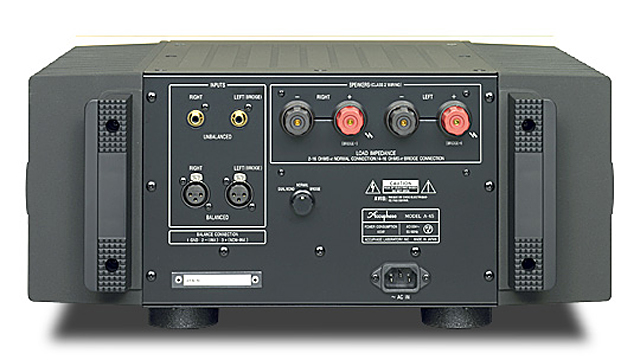

A-45A-45 Backview

Pure Class A power amplifier uses power MOS-FET devices to deliver 45 watts per channel (8 ohms). Fully balanced signal paths as found in high-quality instrumentation amplifiers. Further refined MCS+ topology and current feedback result in superb sound quality and excellent ratings for S/N ratio, THD, and other parameters. Strong power supply and power MOS-FET devices in six-parallel push-pull configuration sustain an amazing 360 watts per channel into ultra-low impedance 1-ohm loads (with music signals).

  • Pure Class A operation delivers quality power : 45 watts × 2 into 8 ohms
  • Power MOS-FET output stage features 6-parallel push-pull configuration
  • Instrumentation amplifier principle
  • Further improved MCS+ circuit topology
  • Current feedback combines stable operation with outstanding sound
  • Bridged mode allows upgrading to true monophonic amplifier
  • Large high-efficiency toroidal transformer rated for 600 VA
  • 4-step gain control
Specifications and design subject to change without notice for improvements.
