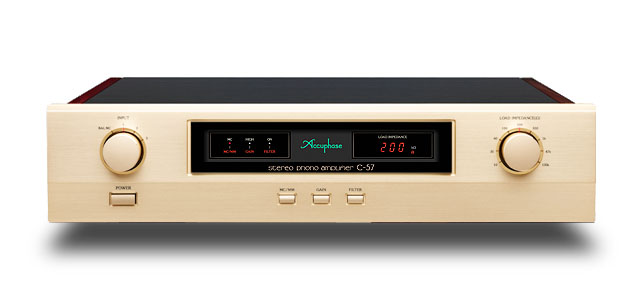

STEREO PHONO AMPLIFIERC-57

The C-57’s configuration provides a fully balanced phono equalizer from input to output. The combination of a high precision equalizer amplifier and a dedicated MC/MM head amplifier fully optimized for the cartridge characteristics creates a highly accurate phono equalizer. As a first, the MC head amplifier uses ANCC to further improve noise performance. Dedicated MC phono balanced inputs allow for balanced connections with record players. The C-57 combines only the best technological advances to extract the full potential of analog discs.

MC head amplifier with ANCC
Low-noise fully balanced configuration
One dedicated balanced MC phono input and three sets of regular phono inputs
Separate settings memory for each input position

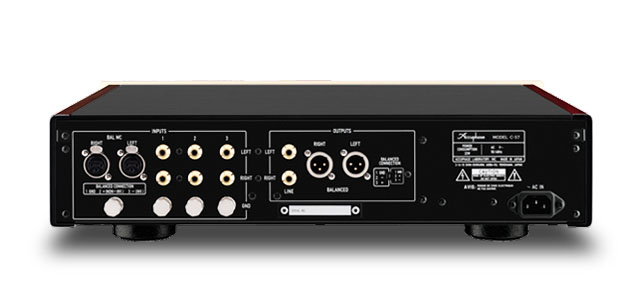

Balanced and line level output connectors
Polarity selector for balanced output
Monaural construction layout
Low-noise regulated power supply circuitry unaffected by load fluctuations
High-accuracy phono equalizer with RIAA deviation of only ±0.3 dB
Load impedance settings for seven MC and three MM phono cartridge types
MC: 10/30/60/100/200/300/1k ohms
MM: 1/47/100 kilohms
7-segment load impedance LED display
Gain selector for low-output phono cartridges
Subsonic filter ON/OFF selector
Disc equalizer assembly using glass fiber cloth fluorocarbon resin PCB with low dielectric constant and low losses
High-capacitance 25 V/15,000 μF filter capacitors
Toroidal power transformer
Aluminum top plate with hairline finish
Elegant side panels with natural wood grain finish
High-carbon cast iron insulators for superior vibration damping
