PRECISION INTEGRATED STEREO AMPLIFIERE-5000

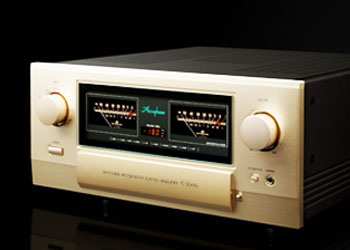

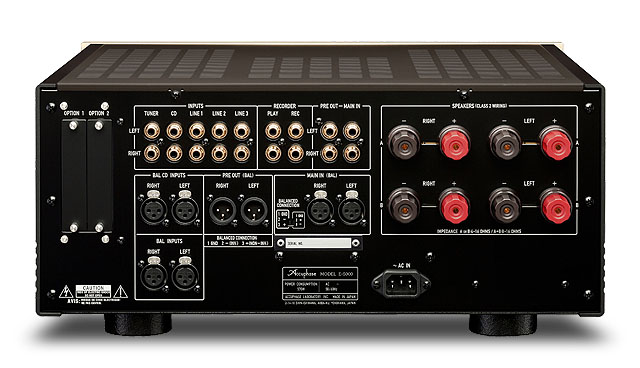

E-5000 E-5000 Backview

The E-5000 is the flagship high-power Class AB integrated amplifier developed to mark Accuphase’s 50-year
anniversary. The preamplifier section features our superior Balanced AAVA volume control, while the power
amplifier section includes an instrumentation amp and power transistors in a five-fold push-pull arrangement
driven in Class AB. These circuits create a balanced circuit from input to output. With its precisely balanced circuits and solidly built output stage, the E-5000 integrated amplifier presents every piece of music in exquisite detail.

  • Balanced AAVA volume control
  • Highly reliable logic-control signal switching relays
  • Ample input connectors (Five line level and two balanced)
  • Line level input and output connectors for a recorder
  • Individual phase setting for each input
  • Stereo signal can be switched to monophonic operation
  • Left / right balance control through Balanced AAVA
  • Volume attenuator that can instantly reduce sound as low as –20 dB
  • Loudness compensator to adjust audible sonic balance
  • Tone controls using summing active filters
  • Power amplification stage employs instrumentation amplifier principle
  • Current feedback amplification circuit topology assures excellent phase characteristics in high range
  • Speaker output protection circuit guards against short-circuiting
  • Protection circuitry using low impedance, highly reliable MOS-FET switches
  • Two massive speaker connectors for output switching and simultaneous output
  • Line level and balanced outputs at the preamplifier section support bi-amping connection
  • Line level and balanced inputs at the power amp section allow use as a power amplifier
  • Dedicated, high-quality headphone amplifier constructed with discrete components
  • Two expansion slots for option boards
Specifications and design subject to change without notice for improvements.
